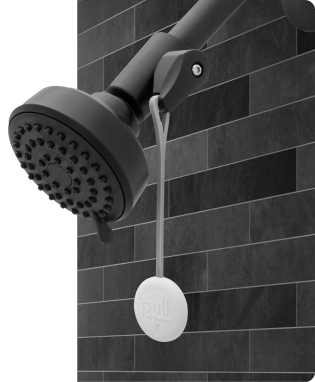

ShowerStart® Multifunction Showerhead ShowerStart® Multifunction Showerhead

ShowerStart® Multifunction Showerhead

Multifunction showerhead with integrated ShowerStart TSV to help prevent hot water waste during shower warm up.
(No reviews yet) Write a Review
Brand:

Evolve

Model #:
EV3024-CP125
QTY:
20/Case

Details

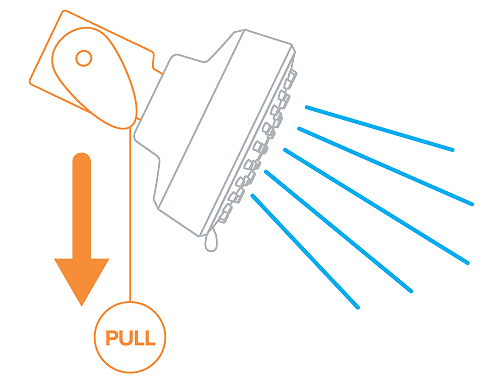

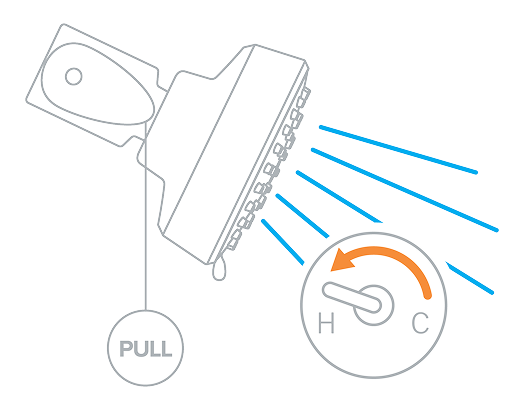

The ShowerStart® Multifunction Showerhead shall attach to shower arms with ½’’ NPT male fittings. The integrated ShowerStart TSV shall automatically reduce the showerhead’s flow to a trickle once water measuring 95° F (35° C) reaches the fixture to save the hot water that’s used during the user’s warm-up routine (behavioral waste). The trickle shall continue until the user reactivates normal flow by pulling on the TSV’s lanyard or toggling the bypass lever to which the lanyard is attached. Once water flow to the handshower is terminated its integrated valve shall automatically return to its normally closed position. The ShowerStart® Multifunction Showerhead is designed to operate in plumbing environments with static water pressures of 30 psi or higher.

Features

  • Integrated ShowerStart TSV (Thermostatic Shut-off Valve) prevents hot water waste during shower warm up (behavioral waste)
  • Full body spray, massage spray & pause
  • 50 rub-clean, anti-clog spray nozzles
  • Pressure compensating flow regulation
  • Designed for use with static water presssures of 30 PSI or higher





Downloads

EV3021-CP150-SB Spec Sheet.pdf
Showerhead TSV User Guide.pdf

Specifications

GPM:
1.5
Finish:
Chrome
Face Diameter:
3.25"

Warranty

AM Conservation warrants that this product is free from defects in material and workmanship for a period of three years from the date of the first purchase or the original distribution of the product under an energy conservation program, subject to the proper installation and/or use of the product. For full standard limited product warranty, please visit amconservation.com/warranties.
